用途與特點：
籠式粉碎機廣泛用于有機礦物質、復合肥粉碎、復合肥顆粒粉碎、肥料粉碎。它可粉碎含水量在6%以下的各種單一化肥，尤其適用于硬度較大的物料，是一銨、二銨、尿素等硬粒物料的克星。 籠式粉碎機是由機架、機殼、大鼠輪組、小鼠輪組和兩臺電動機等主要部件組成，工作時由一臺電機帶動大籠子順向旋轉，另一臺電機帶動小籠子逆向旋轉，物料通過料斗進入內鼠輪框內，由高速旋轉鋼條對物料反復沖擊破碎，從而達到將物料細碎的效果。該機具有結構簡單，粉碎效率高、密封性能好，運轉平穩，便于清理、維修方便等特點。

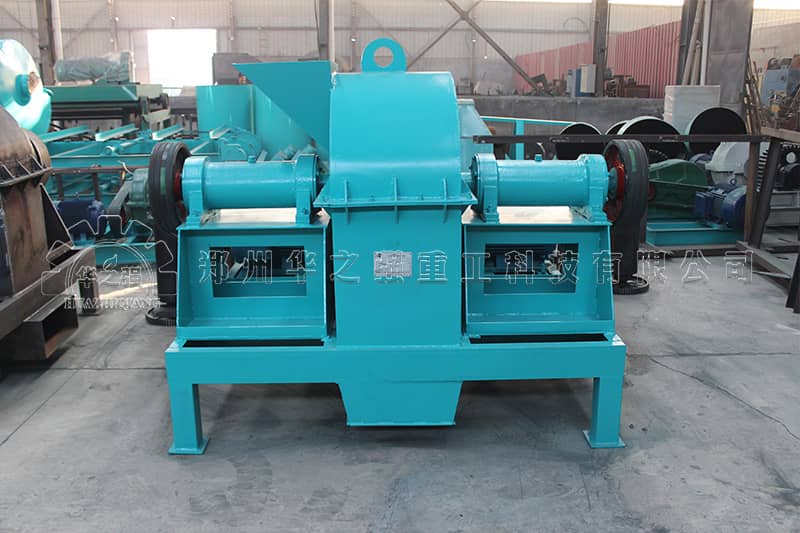

Cage Crusher
Use and Features:
The cage crusher is widely used in organic mineral, compound fertilizer crushing, compound fertilizer particle crushing and fertilizer crushing. It can crush all kinds of single chemical fertilizers with water content below 6%, especially for materials with high hardness. It is a nemesis of hard materials such as ammonium, diammonium and urea,etc. The cage crusher is composed of frame, casing, big rat wheel set, small rat wheel set and two motors. When the machine workink, one motor drives the large cage to rotate smoothly,The other one motor drives the small cage to reverse rotation,the material enters the inner rat wheel frame through the hopper, The high speed rotating steel bar repeatedly impacts and breaks the material, so as to achieve the fine crushing effect. The machine has the advantages of simple structure, high crushing efficiency, good sealing performance, smooth operation, easy cleaning and convenient maintenance.
它可粉碎含水量在40%以下的單一化肥，適用于硬度較大的物料。該機是根據沖擊破碎原理設計而成的，內外 兩組籠條作高速相向旋轉，物料自內而外通過籠條撞擊而粉碎，具有結構簡單，粉碎效率高、密封性能好，運轉平穩，便于清理、維修方便等特點。
用途及特點
本機由機架、機殼、大鼠輪組、小鼠輪組及兩臺電動機等主要部件組成，工作時由一臺電機帶動大籠子順向旋轉，另一臺電機帶動小籠子逆向旋轉，物料通過料斗進入內鼠輪框內，由鋼條對物料產生反復沖擊破碎，從而達到將物料細碎的效果。
技術參數
| 型號 |
轉速 (r/min) |
功率 (kw) |
產量 (t/h) |
外型尺寸（長寬高） (L× W ×H)(mm) |
重量 (kg) |
| WLF650 | 2000 | 26 | 4-6 | 1800×1300×1160 | 2300 |
| WLF800 | 2000 | 37 | 6-10 | 2200×1500×1360 | 2550 |
